China Qinghai Agriculture and Animal Husbandry Co., Ltd. is a modern agricultural and animal husbandry technology production enterprise integrating pig breeding, piglet breeding, and organic fertilizer production. Ionized water.

1.Industry background

In large-scale livestock and poultry breeding, the sanitation of the breeding environment is crucial. In addition to treating manure and maintaining basic environmental hygiene, it is also necessary to control the level of microorganisms in the environment. The content of microorganisms in the background has a significant relationship with the incidence of diseases. Based on the severe microbial contamination of pig farms, the existing disinfection technology has problems of low prevention and control efficiency and environmental pollution. Acid ionized water has the advantages of high efficiency, broad-spectrum, no pollution, and no residue. The application of ionized acidic water is widespread in Japan and Taiwan; in Pennsylvania, the United States, some ranches drink ionized water for cattle to increase milk production and, at the same time, improve the fat content of milk.

Ionized acidic water can kill Salmonella, Escherichia coli, Staphylococcus aureus, mold and yeast, and other microorganisms, and its bactericidal effect is significantly better than other disinfectants. Electrolyzed water can also effectively reduce microorganisms on the surface of pigs and can also disinfect drinking water pipelines for livestock and poultry.

Ionized water sterilization technology is a new technology that has been developed in Japan in recent years. The strong acidic water and strong alkaline water generated after water electrolysis can sterilize and disinfect in a short time. It has the characteristics of low production cost, convenient preparation, and short sterilization time. In particular, it can be reduced to ordinary water by REDOX after a few minutes of use, without residue. It can be widely used in soaking, cleaning, disinfection, sterilizing families, hospitals, restaurants, food processing plants, and breeding farms. The use of ionized water as a food processing plant disinfection cleaning liquid can completely replace sodium hypochlorite to achieve staff, equipment, and ground safe, convenient, fast disinfection and sterilization.

In pig farms, chicken farms, ionized water is often used to wash the ground to achieve the purpose of sterilization and disease prevention. Because there is usually more organic matter on the ground of the farm, a large flow of ionized water can be used for washing. The experimental results showed that compared with washing with ordinary tap water, the number of residual bacteria on the ground treated with strong acidic ionized water with pH of 2.5 was 1/30 to 1/60 of the former, which could effectively prevent the occurrence of infectious diseases.

2.Water Ionizer Basic Principle

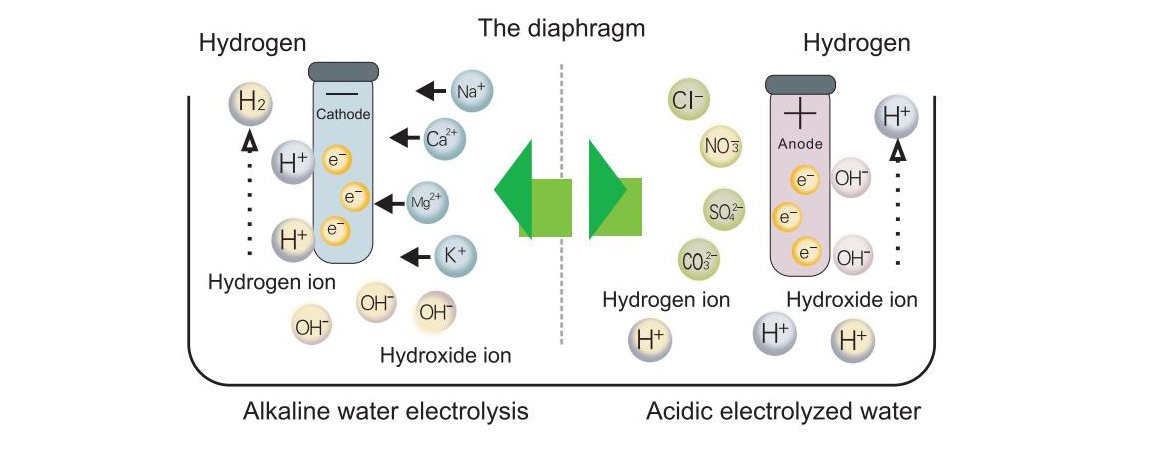

Livestock tend to use groundwater or spring water as the water source, electrolysis of water is the water after purification, enter the electrolysis of water machine inside, using the electrochemical method, produce composite life drinking alkaline electrolytic water, the water at the same time with small molecules, the negative potential can be a good fight against pathogenic free radicals in the body of life. At the same time, producing positive potential, weak acid can sterilize acid electrolytic water. The basic principle is shown in the figure below:

3.Application profile

Ionized water is to input water into an ionizer to separate neutral raw water into alkaline water and acidic water. The cathode and anode in the ionizer, the cathode produces alkaline water, which is suitable for human and animal drinking; In the anode at the same time will produce acid water, with the role of sterilization and disinfection.

Alkaline water has the characteristics of alkaline, small molecular group, negative potential,content Dissolved hydrogen, and mineral, which is a drinking water with health care function.alkaline can neutralize the acidic produced by metabolism and maintain a healthy alkaline constitution. Small molecular clusters water activity are more potent than ordinary water, can accelerate the function of metabolism. Both negative potential and hydrogen function of scavenging free radicals and anti-oxidation. Drinking alkaline water can improve the constitution of livestock and poultry, enhance disease resistance, and significantly reduce the amount of anti-biotin in livestock and poultry.

Corral of disinfection, abandon the original high toxicity, high pollution putting medicine, switch to high potential acidic water electrolysis, effective quick kill bacteria, viruses, microbial infection directly reduce human, reducing the number of antibiotics, as well as degradation of animal manure, significantly improve the emission pollution, reduce the smell of the birdhouse.

One machine and three uses:

1.Filtration and purification of groundwater, removal of heavy metal, microbial, organic pollution in water, so that livestock and poultry drink safe water in line with drinking standards, itself can reduce the risk of disease.

2.After ionizer, purified water becomes rich in calcium and magnesium, small molecular groups and weak alkaline water, which can improve the gastrointestinal environment of livestock and poultry.

3.Periodic and regular disinfection of livestock and poultry houses with acid water can effectively prevent the spread of various infectious diseases.

4.Scheme Design:

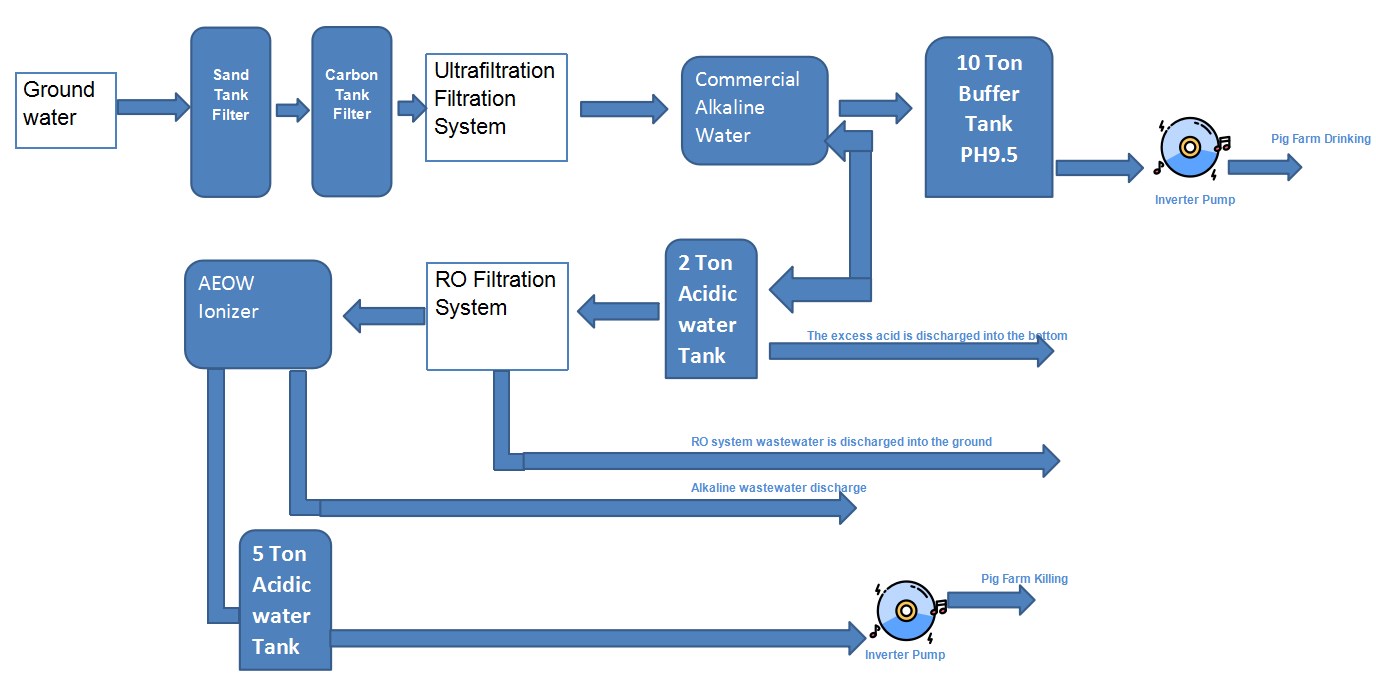

JEUDAO WAOD-10 intelligent electrolytic ionized water preparation system was adopted according to the actual data. The daily drinking water of each pig is 7 kg, and the daily drinking water of 20,000 pigs is about 140 tons. The designed production capacity of alkaline ionized water is 10,000 L/ h. The continuous preparation and storage method is adopted, and the constant temperature device is added to the pipeline to ensure that the water supply temperature is kept at about 25 degrees. The breeding area is sterilized every three days, and intelligent atomization disinfection is adopted. The office area, personnel, and vehicle entry and exit area are fixed by induction. The designed production capacity of high-potential acidic water is 500L/ h, which can fully meet the needs of elimination in the whole region. The entire system adopts an intelligent module link, which can start and stop with one key, automatic switch, remote control, automatic.
